Diaphragm seal · Direct threaded connection

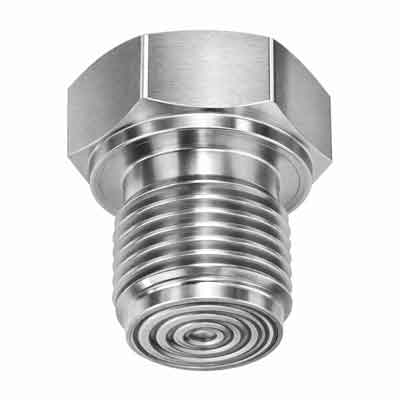

Threaded Diaphragm Seal
Compact, configurable protection for pressure gauges, transmitters and switches in demanding process service.
A flexible diaphragm isolates the process media while fill fluid transfers pressure to the instrument—helping protect measurement hardware from corrosion, clogging, contamination and difficult fluids.
- Compact footprint
- NPT, BSP and specified threads
- Application-matched wetted materials
Quick answer
What is a threaded diaphragm seal?
A threaded diaphragm seal is a pressure-isolation device that mounts directly to a process through a threaded fitting. Process pressure acts on a flexible diaphragm; a sealed fill fluid then transmits that pressure to a gauge, transmitter or switch without allowing the process media to enter the instrument.
This format is commonly selected when space is limited, a flange is not practical, or the piping system already uses standardized threaded connections.
Simple pressure transfer
How a threaded diaphragm seal works
The seal creates a physical barrier between the process and the instrument while preserving a pressure-transmission path.
-
1
Process pressure arrives
The threaded process connection exposes the seal diaphragm to the process pressure.
-
2
The diaphragm responds
The flexible diaphragm deflects in response to pressure while separating the media from the instrument.
-
3
Fill fluid transfers pressure
A sealed fill system carries the pressure signal from the diaphragm to the instrument.
-
4
The instrument measures
The gauge, transmitter or switch responds to the transferred pressure without direct media exposure.
Application fit
When to use a threaded diaphragm seal
A threaded seal is a practical choice when the process connection, available space and maintenance approach favor a compact direct-mount solution.
A strong fit when
- Installation space is limited
- A flanged connection is not practical
- The process uses standard threaded fittings
- Simple installation or replacement is valuable
- A compact, cost-conscious configuration is preferred
Common process challenges
- Corrosive or chemically aggressive media
- Viscous fluids, slurries or solids-bearing service
- Contaminated or clog-prone process lines
- Temperature-sensitive measurement systems
- Applications where instrument life is a priority
Common markets
Used across process industries
- Oil & gas
- Chemical processing
- Water & wastewater
- Food & beverage
- Pulp & paper
- General industrial
Engineer the complete assembly
Information to define before selection
Gathering the process and instrument inputs below helps Haygor identify an appropriate seal configuration and quote it efficiently.
Process connection
Thread standard, nominal size, male or female orientation, and available installation space.
Pressure conditions
Normal operating pressure, full scale, expected excursions, vacuum exposure and required response.
Process temperature
Normal and maximum temperatures, ambient conditions and any rapid temperature cycling.
Process media
Chemical composition, concentration, solids content, viscosity, abrasiveness and cleaning requirements.
Instrument details
Gauge, transmitter or switch model, instrument connection, orientation and mounting arrangement.
Material and fill system
Wetted-material compatibility, diaphragm material, coating needs and application-suitable fill fluid.
| Selection input | Examples to provide | Why it matters |
|---|---|---|
| Process media | Name, concentration, solids, viscosity | Drives wetted-material and diaphragm compatibility |
| Pressure | Operating range, full scale, spikes, vacuum | Supports diaphragm and instrument-system sizing |
| Temperature | Process, ambient and cleaning temperatures | Influences fill fluid, response and system performance |
| Connections | Process and instrument thread specifications | Ensures mechanical fit and installation compatibility |
| Installation | Direct mount, remote mount, orientation, space | Affects layout, capillary needs and serviceability |
The items above are configuration inputs, not fixed product specifications. Available connections, materials and operating limits depend on the completed assembly and application review.
Why Haygor
Built around the process—not a generic part number
Haygor configures diaphragm seals around pressure range, temperature, chemical compatibility and installation constraints, with material and durability options selected for the service.
Precision manufacturing
Machining and assembly are controlled to support consistent diaphragm response and dependable pressure transmission.
Material expertise
Configurations may use 316L stainless steel, specialty alloys and selected coatings based on process compatibility.
Application-driven design
Seal choices are aligned with actual media, pressure, temperature, instrument and installation requirements.
Durability options
Surface treatments and coatings can be considered for corrosion, abrasion, fouling and service-life objectives.
Compare connection styles
Related diaphragm seal options
Use these related pages to compare flush, flanged and sanitary configurations, or start with the configurator for guided selection.
Frequently asked questions
Threaded diaphragm seal FAQ
These answers provide a starting point. Final configuration should be based on the full process and instrument requirements.
Ask Haygor a technical questionWhat is a threaded diaphragm seal?
It is a pressure-isolation device that attaches to the process with a threaded connection. A flexible diaphragm and sealed fill fluid transfer pressure to the instrument while keeping process media away from the instrument's sensing element.
Which instruments can it protect?
Threaded diaphragm seals are commonly paired with pressure gauges, pressure transmitters and pressure switches. The instrument connection, pressure range and mounting arrangement should be included in the selection review.
When is a threaded seal preferable to a flanged seal?
A threaded format is often selected when the installation is compact, the process already uses threaded fittings, and a direct connection is more practical than a flange. Process standards and operating conditions still govern the final choice.
Can it be used with corrosive, viscous or clog-prone media?
These are common reasons to use a diaphragm seal. The wetted material, diaphragm, coating and fill system must be selected for the specific chemical, temperature, solids and viscosity conditions.
Which thread types are available?
NPT, BSP and other specified threaded fittings may be available depending on the seal configuration. Provide the exact process and instrument connection specifications when configuring or requesting a quote.
What information should I submit for a quote?
Provide process media, pressure range, process and ambient temperatures, thread specifications, instrument details, installation orientation and any material, coating, cleaning or response requirements.
Move from application data to a buildable seal
Configure a threaded diaphragm seal or send the application to Haygor.
Use the configurator for a guided starting point, or request a quote for application-specific engineering support.
